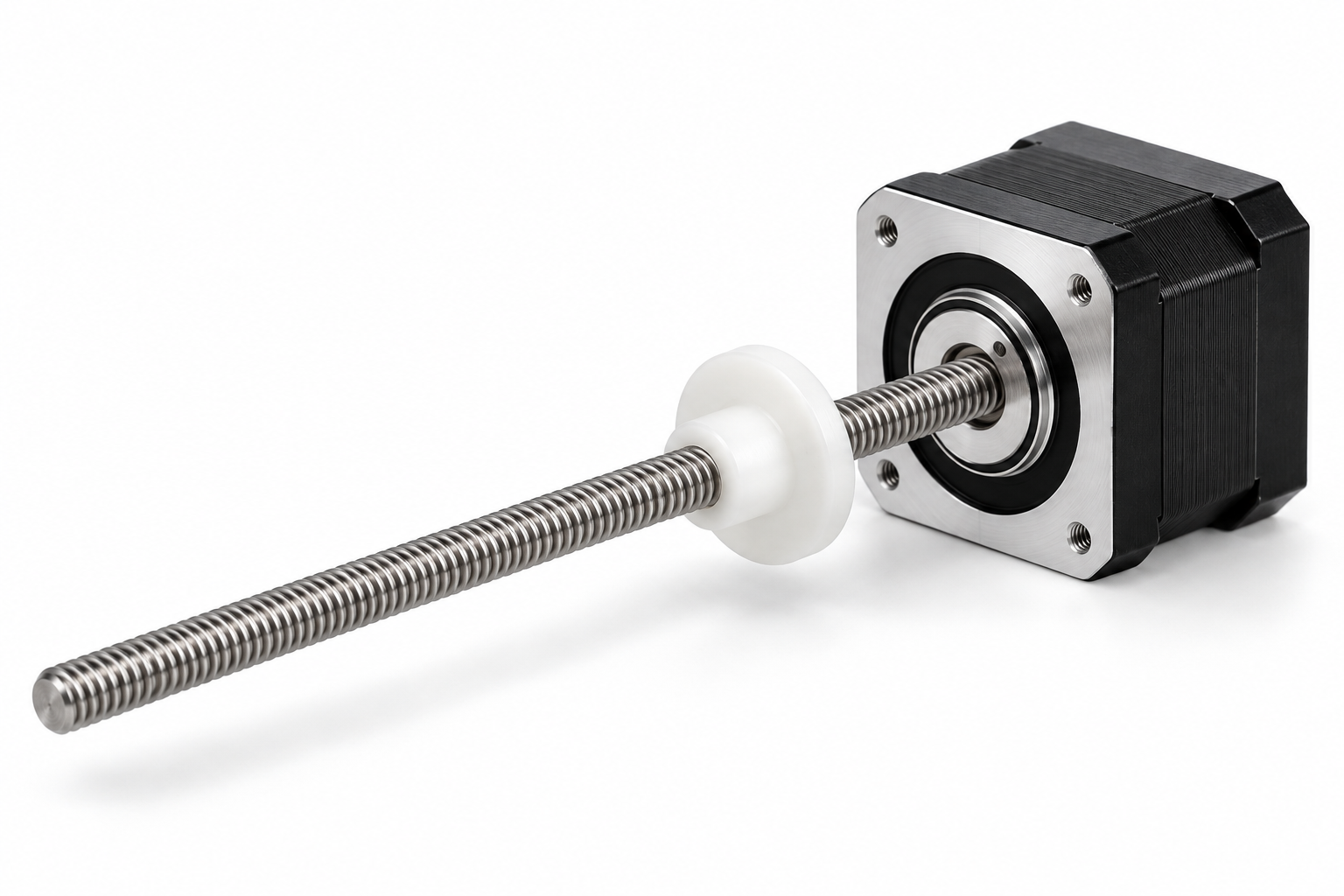

Structure reference · Final configuration may differView structure illustration
Screw length, lead, nut and interfaces require drawing confirmation.
20-228
Documented Dongxu base motor platform. This model identifies the motor platform; a complete screw, nut and travel configuration requires engineering confirmation. Multi-option series parameters are not assigned to this model.
Lead time and configuration confirmed with your quotation.
Engineering specifications
| Frame size | 20 mm |
|---|---|
| Rated current | 0.5 A |
| Screw diameter | 3.5 mm |
| Structure | External |
| Screw technology | Lead screw |
Source: Authorized Dongxu structured catalog, product 102; explicitly listed base model 20-228. Source multi-option values are not assigned to a configured SKU.
Updated 2026-10-09. Unlisted parameters are available on request.
Performance & integration
Performance data available on request. Confirm operating voltage, driver, speed, load and duty cycle for your configuration.
Use the model-specific dimensional drawing and wiring information before integrating the motor. CAD files describe geometry and do not establish operating performance.
Can this model be adapted to my application?
Include your mounting, winding, shaft, screw, nut and connector requirements in the RFQ. Feasibility and final specifications require engineering confirmation.
